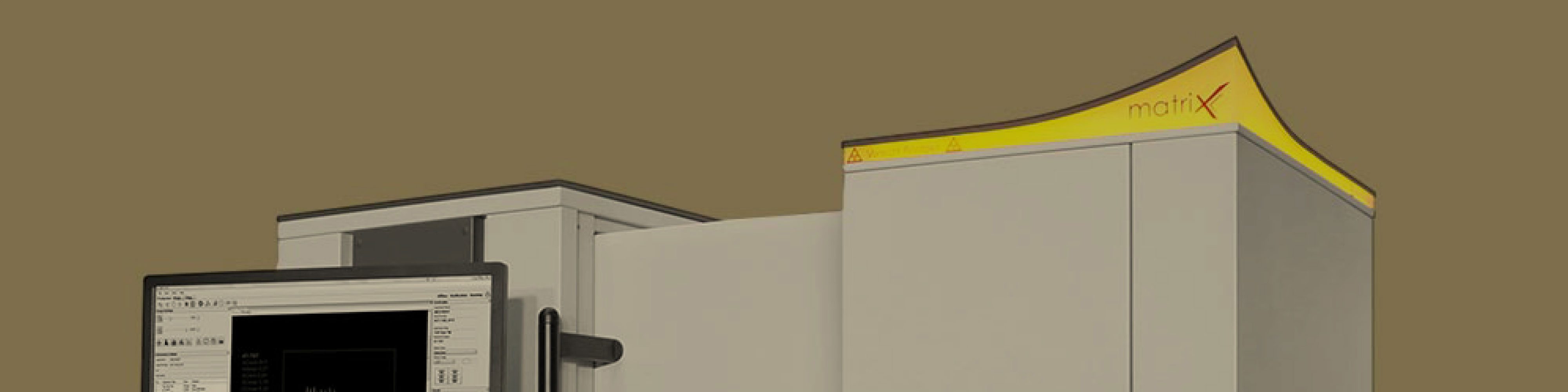

Matrix XT-3 / XT-6 / X3#

High Resolution CT/AXI System / 2014
Manufacturer

Matrix Technologies GmbH, Feldkirchen, Germany

Industrial Design / Implementation

die:haptiker GmbH in cooperation with Matrix Technologies GmbH

Designing Capital Goods

When you hear the word ‘X-ray”, you inevitably think of the possible risks from this radiation.
If confronted with this issue when designing a product, it is important to depict the system being designed in a particularly safe and reliable manner – indeed, “robustly”.
As a result of a multi-variant selection process, we developed a housing system for Matrix, the manufacture of which allows for the use of common parts for a variety of systems and housing volumes.
The clear segmentation into massive housing plates indicates the high radiation protection factor of the housing.
When active, each system indicated that the X-ray process is active by means of the rotating yellow strip light. This distinctive feature has become a strong trademark of Matrix products.

Matrix XCT 1000

High Resolution CT/AXI System / 2014
Manufacturer

Matrix Technologies GmbH, Feldkirchen, Germany

Industrial Design / Implementation

die:haptiker GmbH in cooperation with Matrix Technologies GmbH
